Fokker M.16Z

The Fokker M.16Z (B-III)

The M.16Z was built in February 1916, the designation 'Z' comes from Zweistielig.
Two support struts connected the upper and lower wings of this biplane.
The engine was originally a 6-cylinder 160 hp Mercedes D III inline engine, but the 30 aircraft delivered to Austria-Hungary had a 200 hp Austro-Daimler engine.

In Austria-Hungary this type was designated B-III.

The M.16Z was only purchased by KuK Oesterreichische Ungarische Luftfahrt Truppen.

Click on the photo to enlarge the photo

01

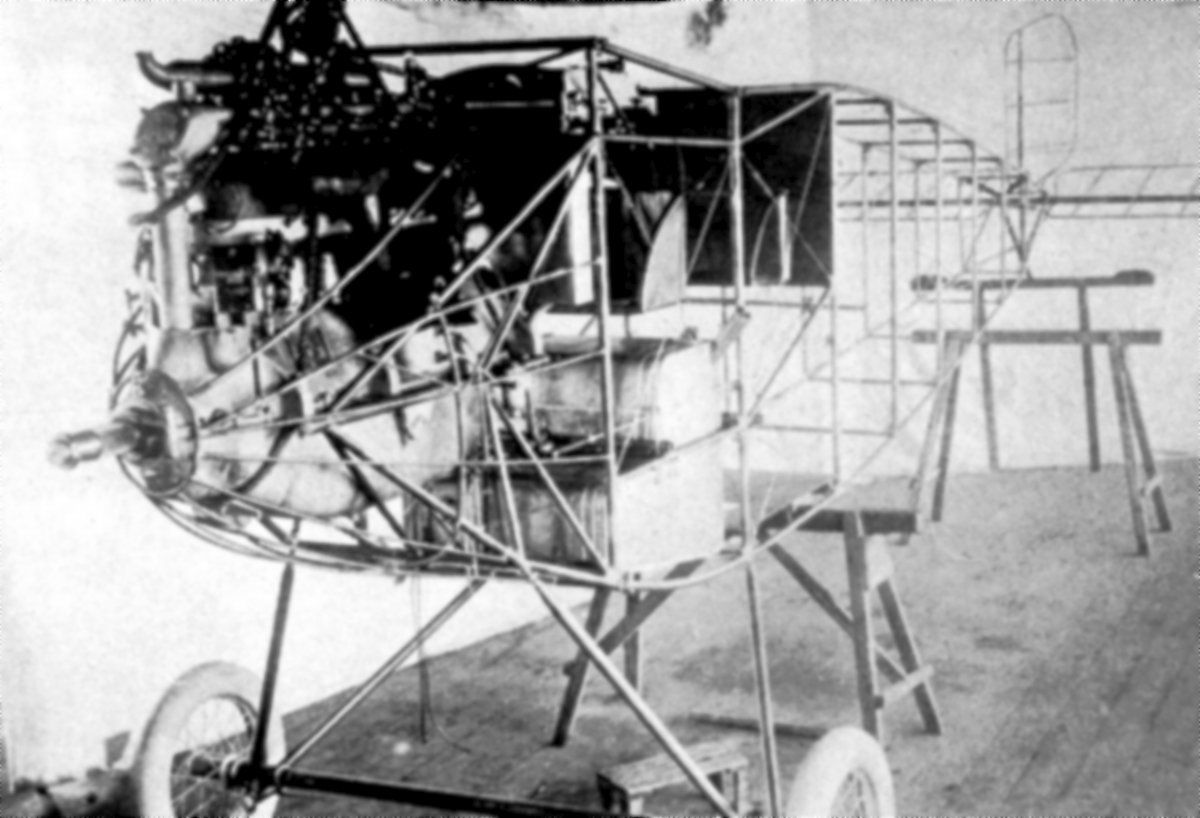

M.16 Z, unclad fuselage with Mercedes engine.
Button
02

Anthony Fokker in front of the M.16 Z with two men in the cockpit.
Button
03

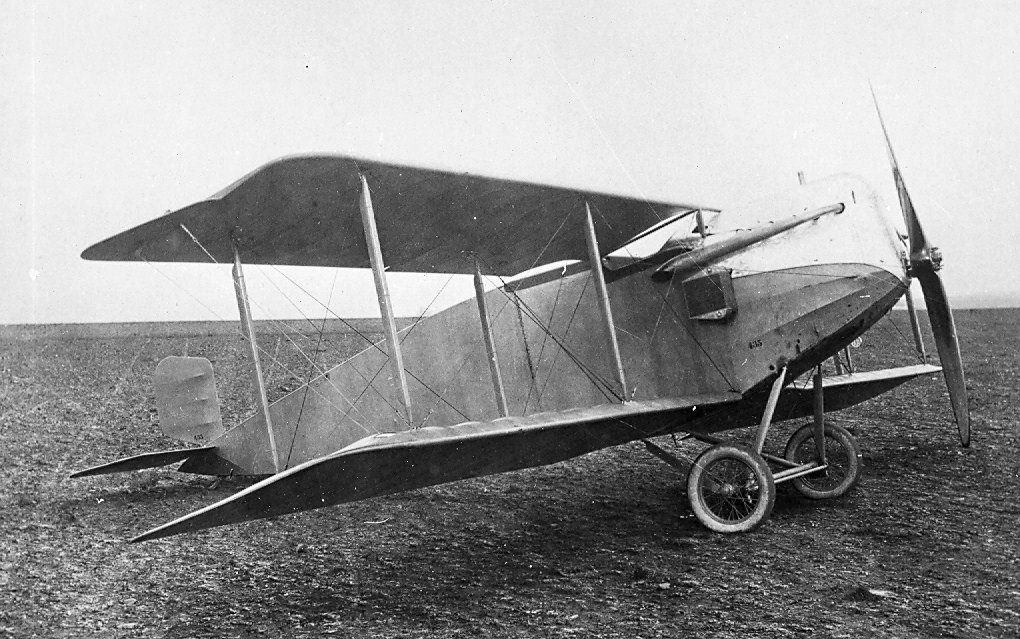

Right side view of the M.16 Z.
Button
04

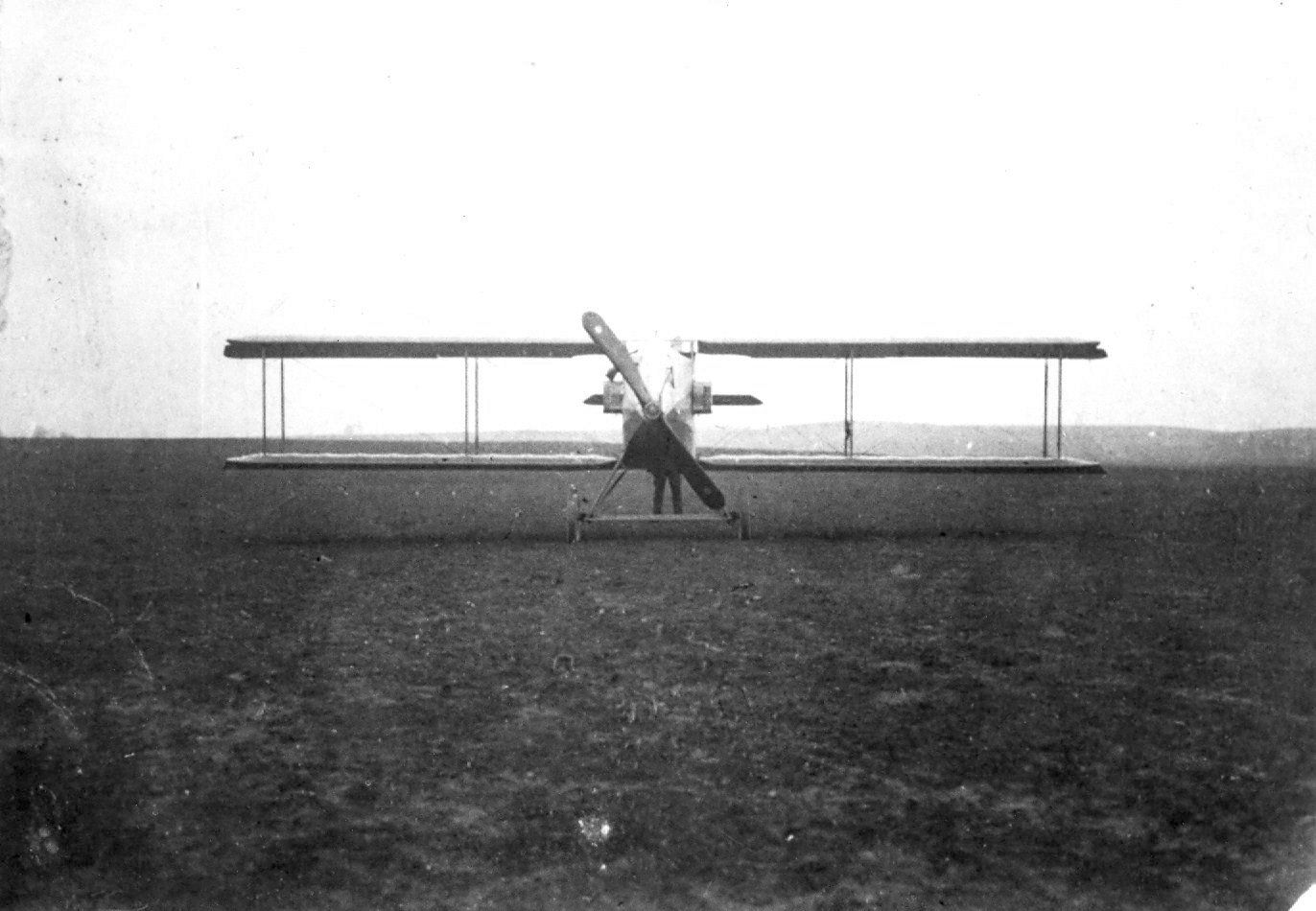

Front view of the M.16 Z.
Button
05

M.16 Z.
Button
06

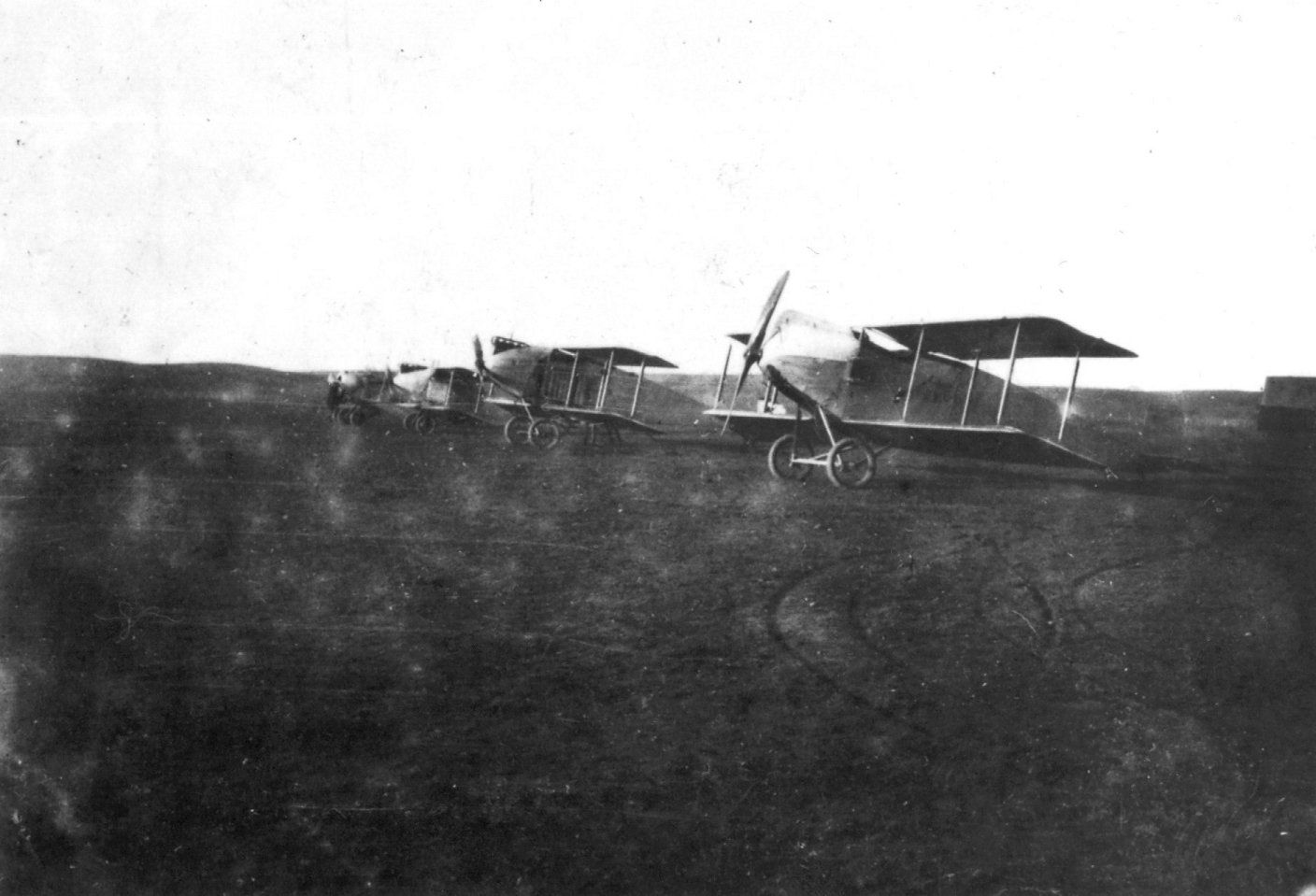

Two M.16 Z aircraft with an M.16 E behind them.
Button
07

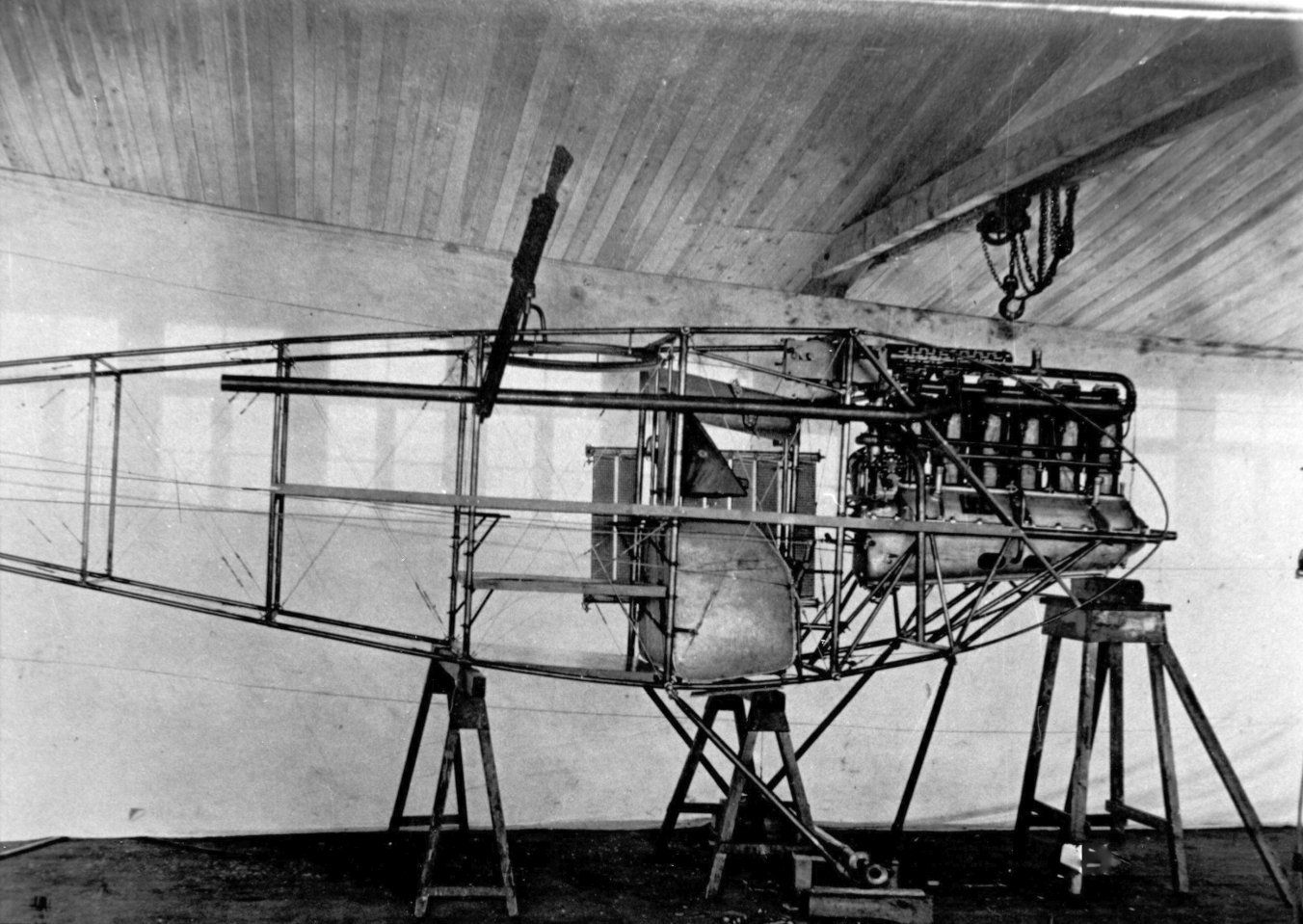

Unclad M.16 Z hull with light armament.
Button
08

M.16 Z.
Button
09

M.16 Z with a larger radiator against the fuselage and a classic Fokker “comma” rudder.
Button
10

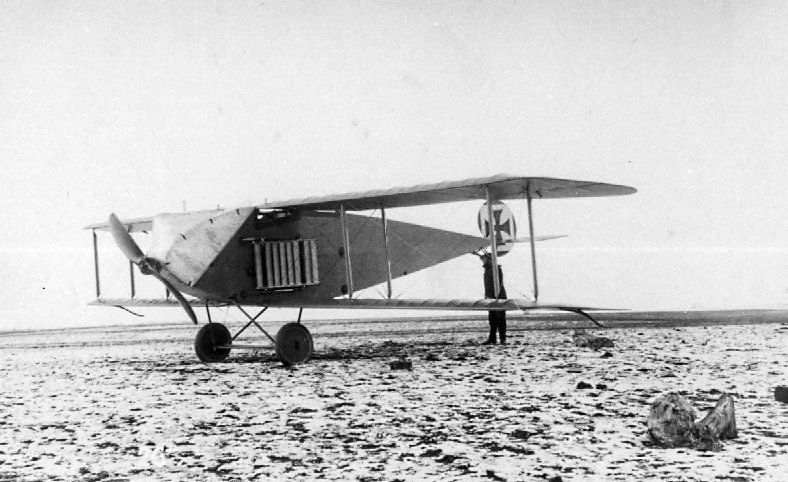

M.16Z in a snowy landscape
Button
11

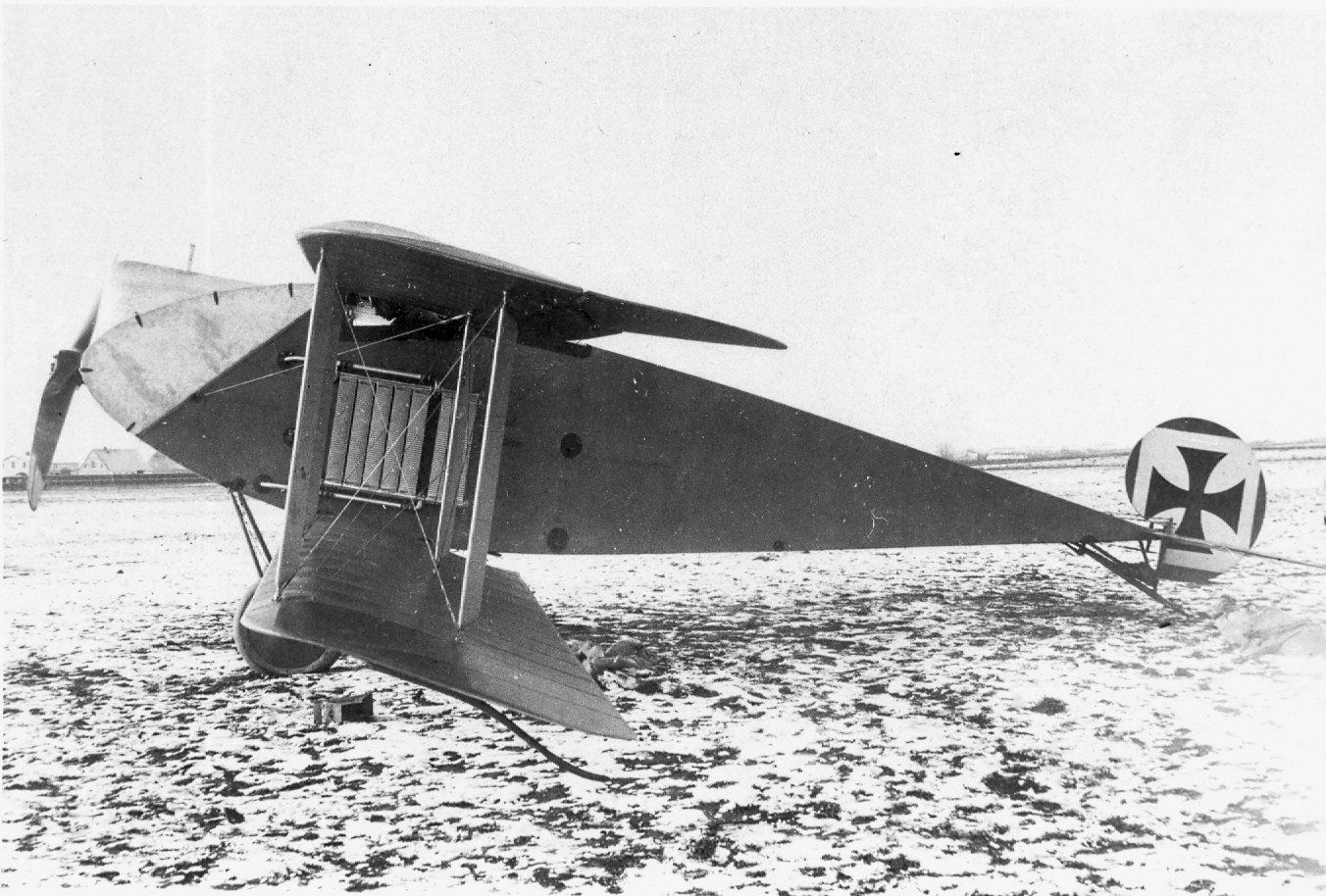

M.16 Z left side view in snowy landscape.
Button
12

M.16 Z with armament.
Button
13

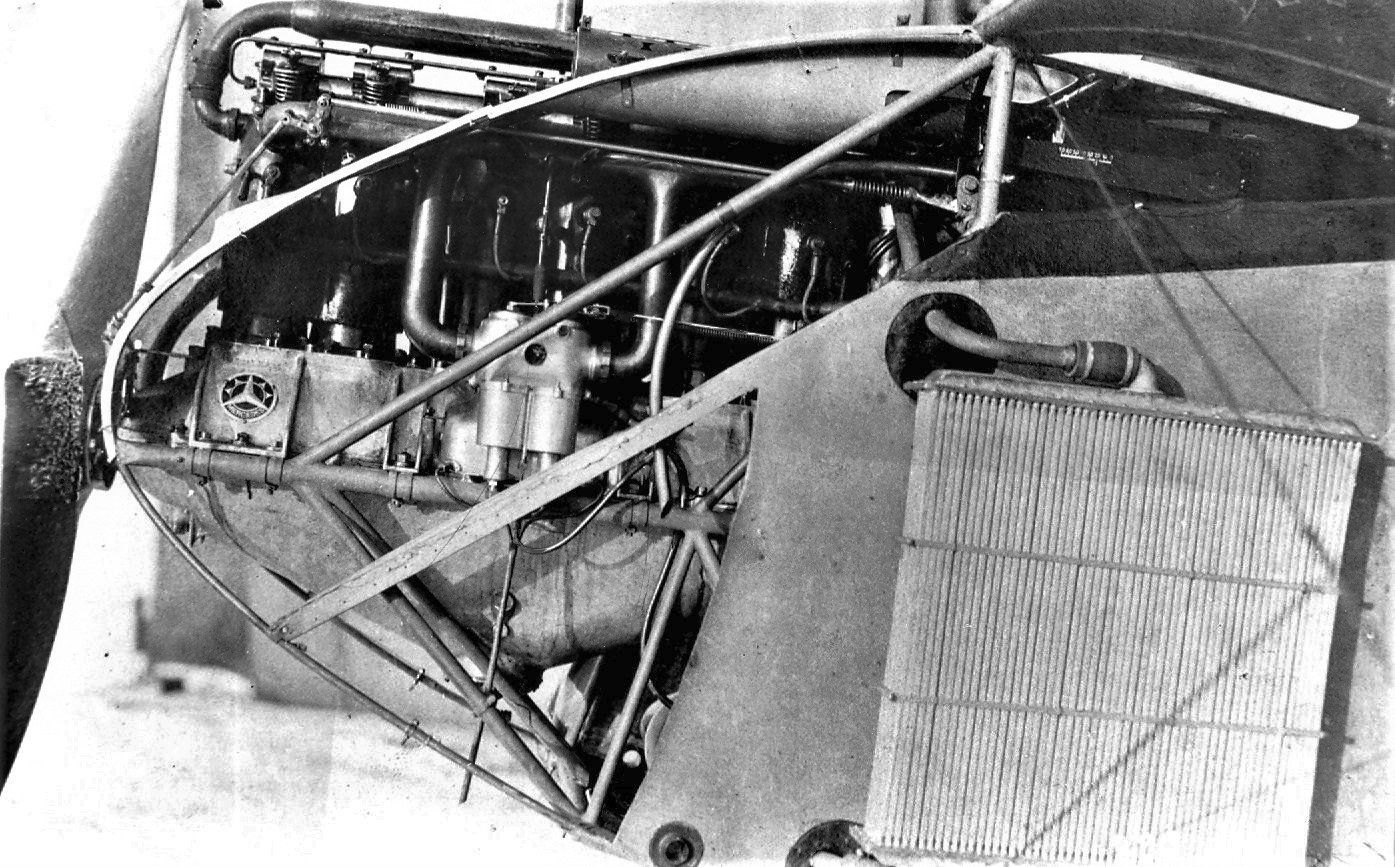

M.16 Z close-up of the Mercedes engine.
Button
14

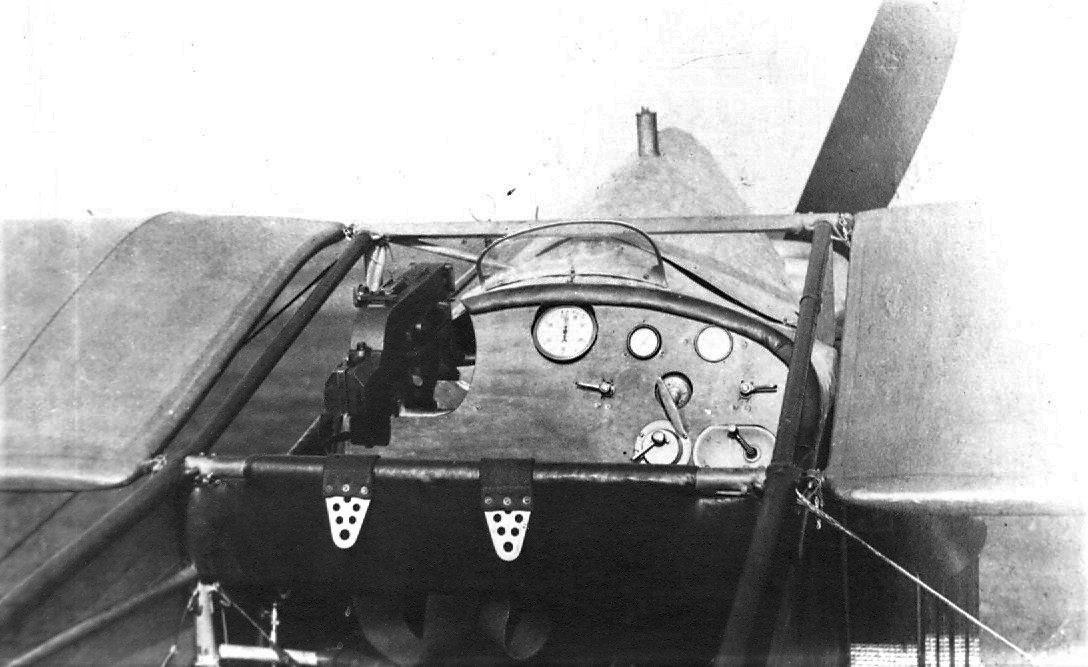

M.16 Z Cockpit with left-mounted armament(?) and two visible shoulder straps.
Button
15

M.16 Z with LMG. 08 machine gun mounted in the hull.
Button
16

M.16 Z with wn 435, was to go to the KuK, Austro-Hungarian Army and receive the registration 03.91.
Button
17

Anthony Fokker in front of the M.16 Z with wn 435.
Button
18

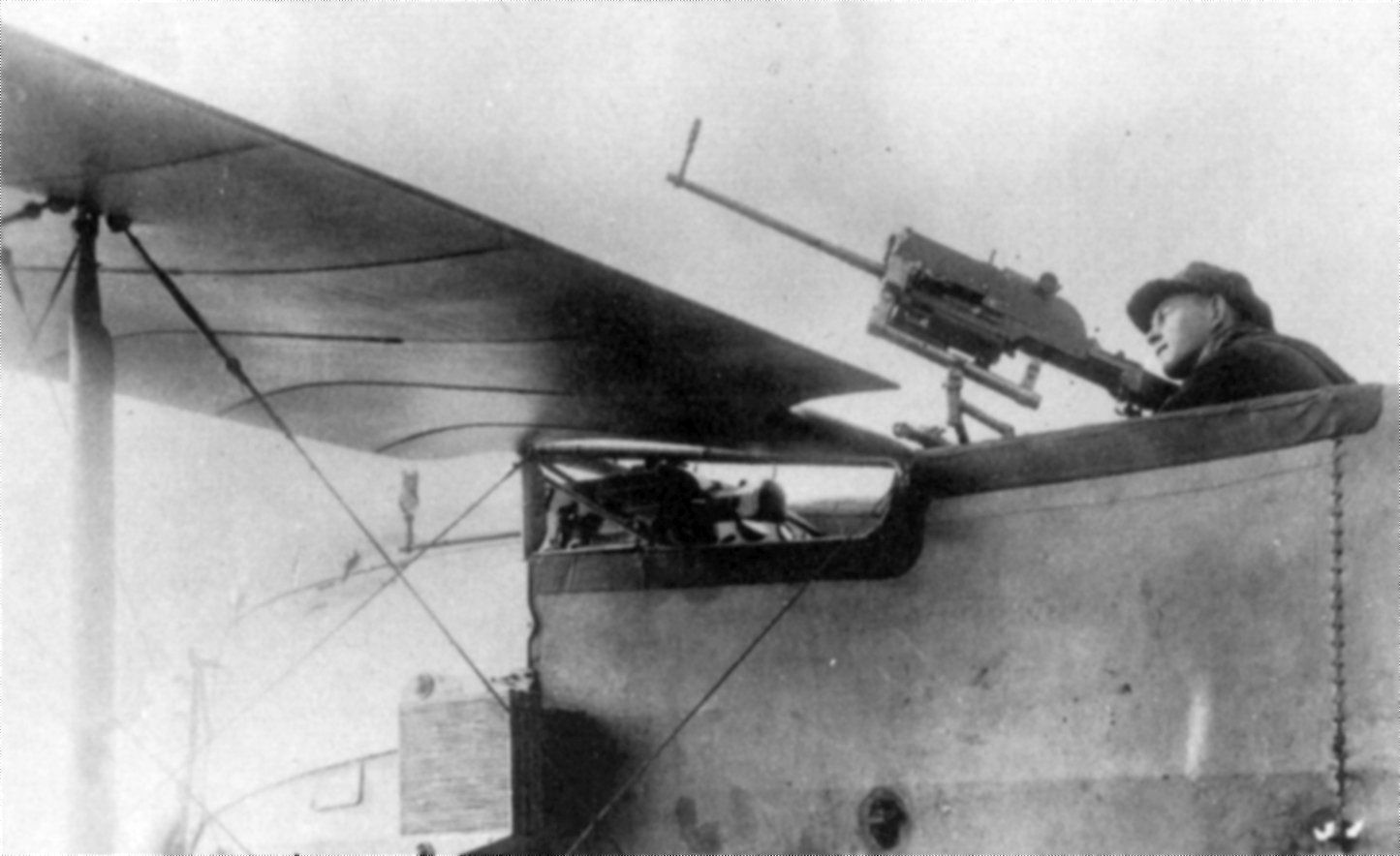

Wn 435 of the KuK, Austro-Hungarian Army with Schwartzlose armament.
Button
