Fokker S.IV (English)

S.IV

Fokker S.IV

Preliminary translation

The Fokker S.IV has been the most used training aircraft at the Soesterbergse Vliegschool (flight school) of the LVA.

From 1924 to 1940 it was the standard trainer of the Air Force.

A total of 31 S.IVs were built, which flew with the LVA in the Indies in addition to the LVA.

Like the S.III, the student and the instructor sat one behind the other in the S.IV.

The S.IV was also strongly built and and could endure severe abuse..

Wingspan: 11.20 m, length 8.50 m, height 3.20 m and wing area 27.60 m^2

Max speed: 150 km/h, cruising speed 130 km/h, landing speed 68 km/h, ceiling 3000 m flight range 700 km

Click on the photo to enlarge the photo

Engines of the S.IV

Armstrong Siddeley Mongoose 150 hp
Siemens SH12 125 hp
Bristol Match 130 hp
Oberursel 110 hp
Clerget 130 hp
Mercedes 120 hp
Armstrong Siddely Puma 120 hp

0

FOKKER S.IV 1924
Like the famous Tiger Moth, the S.IV biplane, developed in 1924, seemed to have eternal life. This type succeeded the obsolete S.III aircraft that were used for the initial training of pilots.
From 1924, the S.IV was used on Soesterberg until well into the thirties.
Most of the aircraft were equipped with a 130 hp Armstrong Siddeley Mongoose radial engine, although the 110 hp Siemens, the 130 hp Bristol Lucifer, the 130 hp Clerget and the 110 hp Oberursel rotary engine were also used.
A total of 31 aircraft were built in Amsterdam.
Button
02

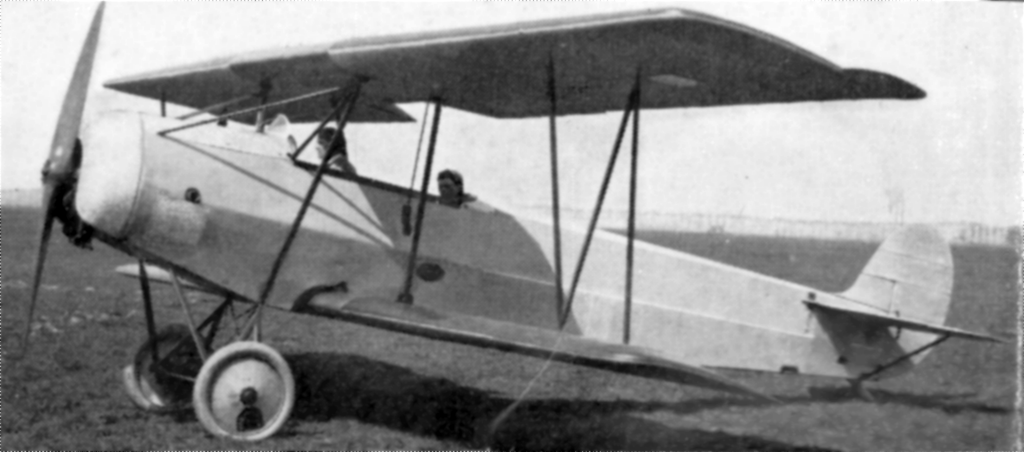

Presumably this is the prototype of the S.IV with a 110 hp Oberursel rotary engine.
Button
03
Button
04

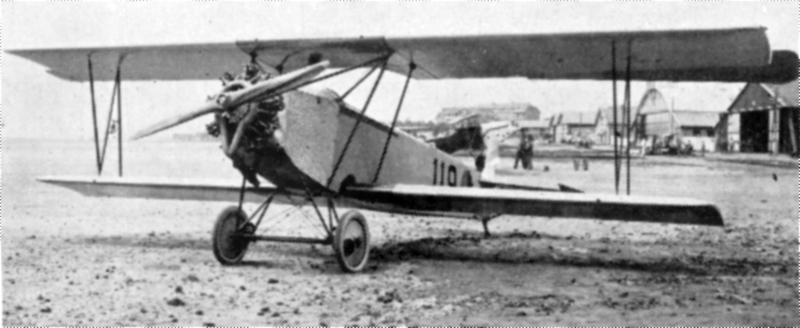

The 118 at Soesterberg.
Button
05

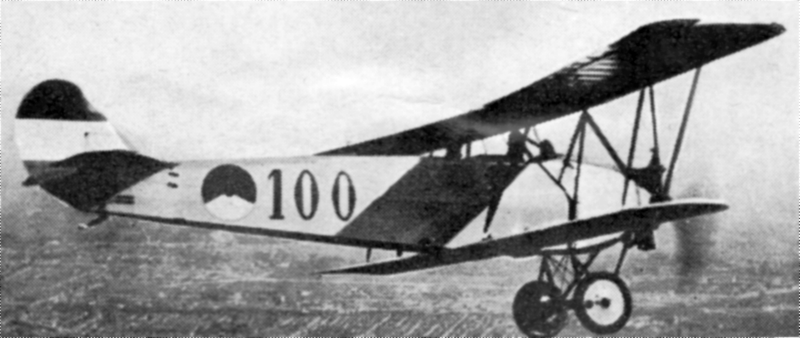

The 100 of LVA in full flight.
This is what the S.IV will look like, which is being rebuilt in Hangar T2 at the Aviodrome.
In addition to the frame, there are many more original parts already in-house, including the engine.
Button
06

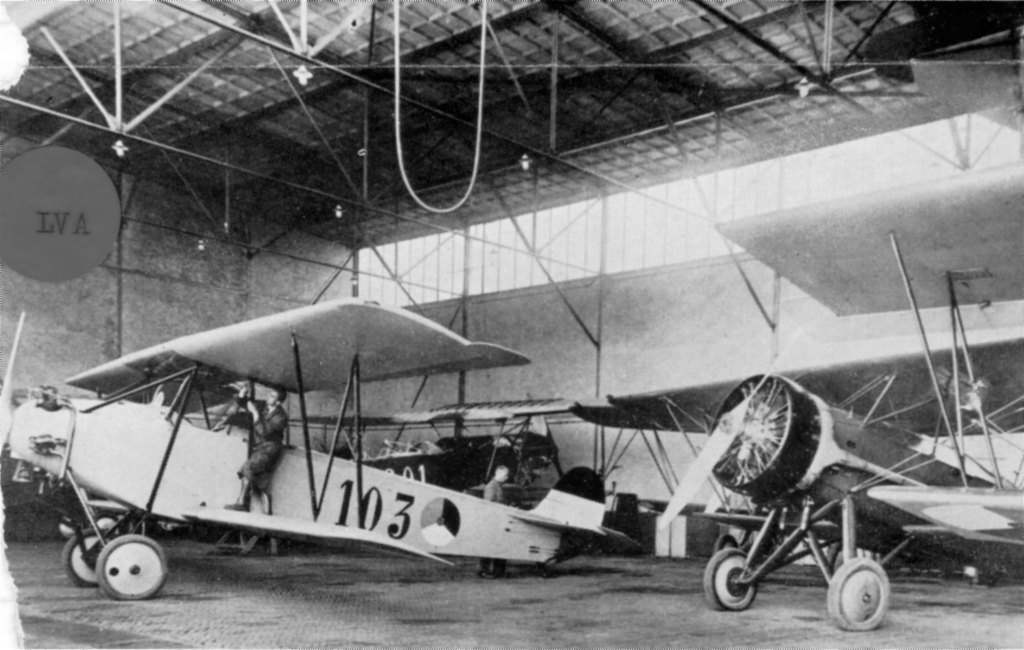

In the hangar at Soesterberg.
The S.IV '103 with a Bristol Lucifer engine of 130 hp.
Right next to it a Fokker D.XVI.
Button
07

The S.IV '118' crashed in May 1940.
It is a rare photo because of the orange triangle on the training plane.
Button
08

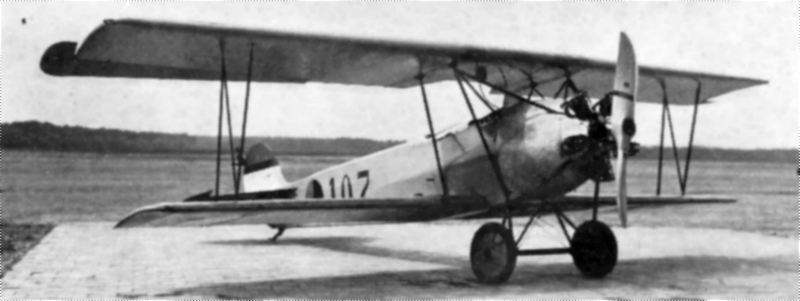

The 107 of the Aviation Department at Soesterberg airport.
Button
09

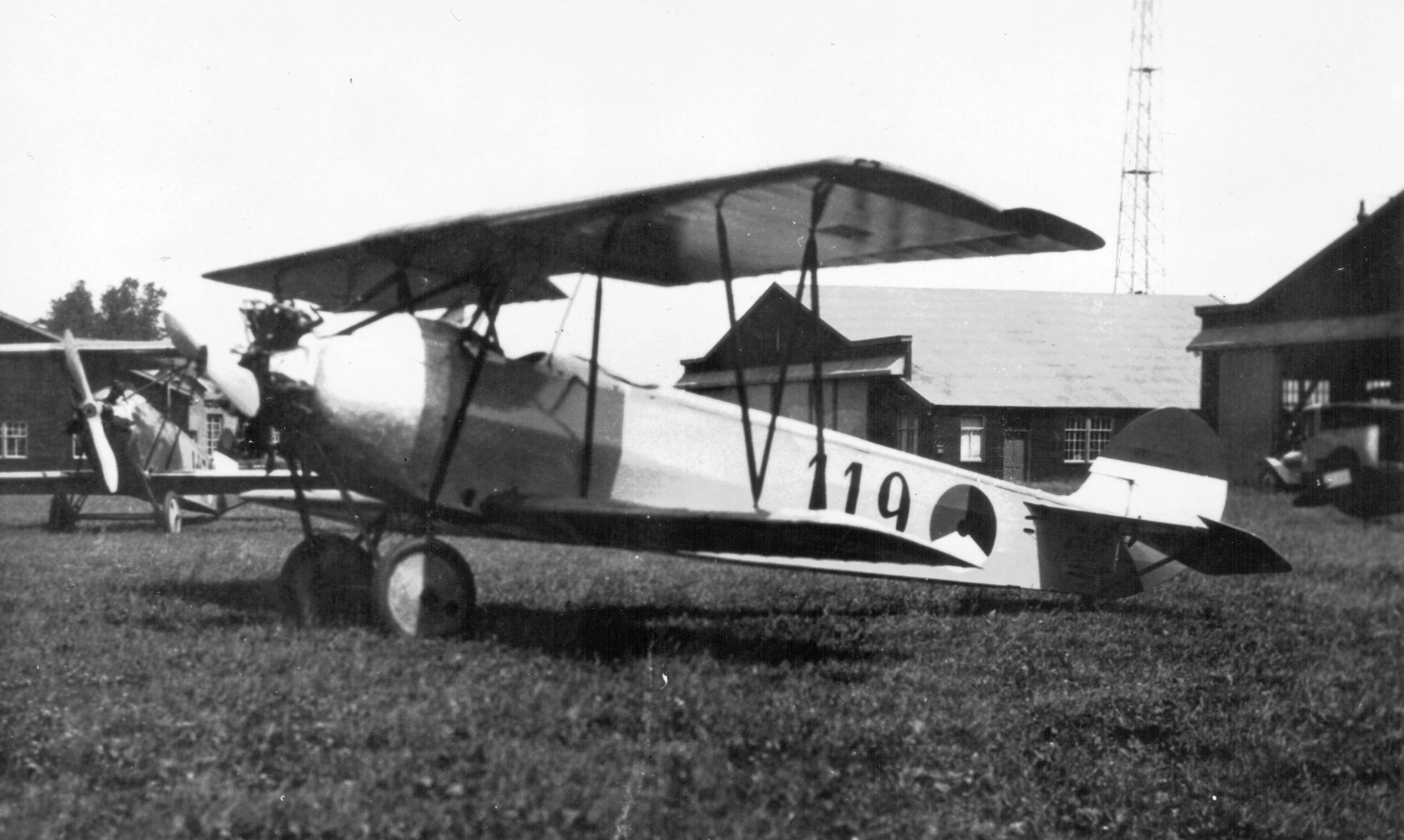

The Fokker S.IV '119'' of the LVA at Soesterberg.
The engine is 130 pk Bristol Lucifer.
Button
10

Soesterberg
Button
11

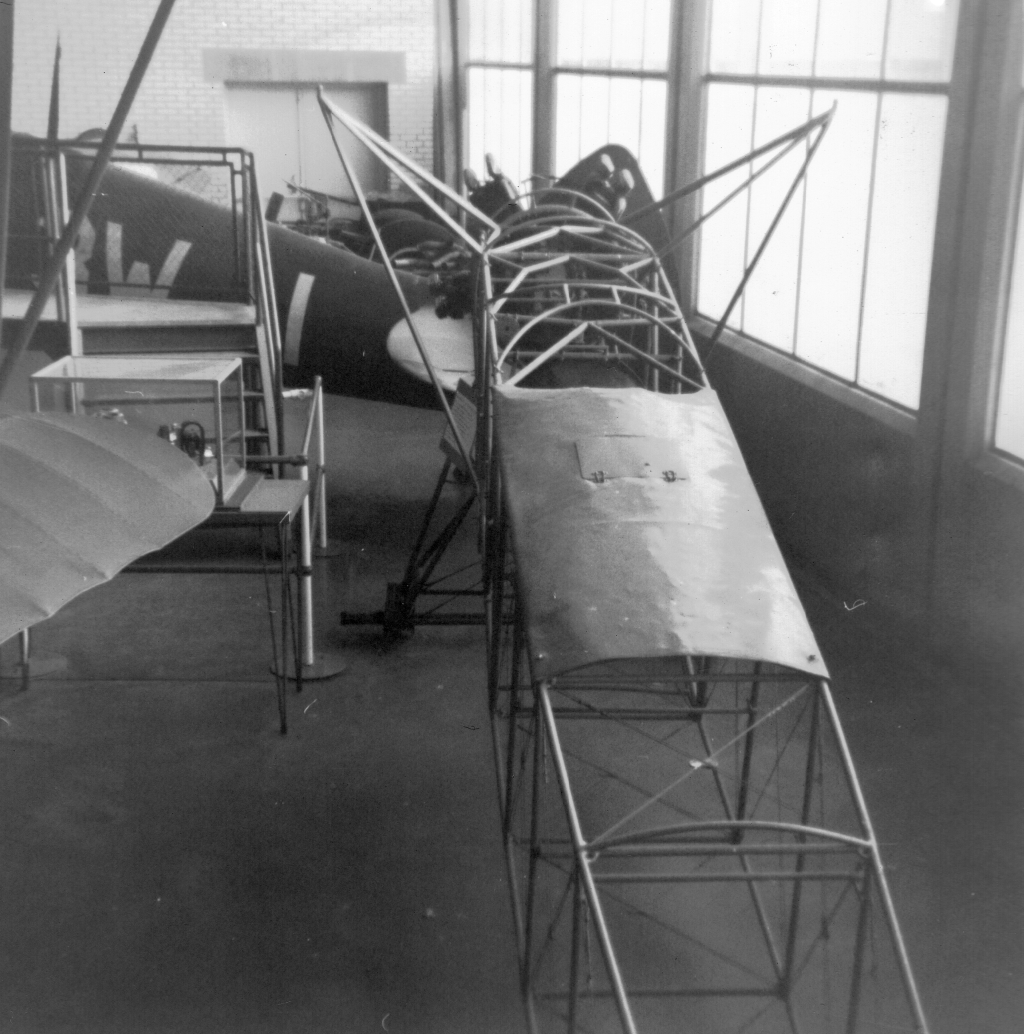

Rear view of the S.IV frame in Airplanorama at Schiphol East.
Or is this already on Aviodome at Schiphol Center?

In any case, this frame is now (December 2020) in the T2 hangar at the Aviodrome in Lelystad.
There a new Project Group is rebuilding this S.IV.
They still miss a picture of the two instrument panels.
Button
12

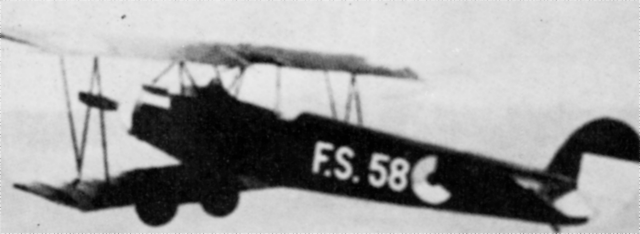

A rare photo of the S.IV 'FS58'.
This flew with the LA in the Dutch East Indies.
The aircraft had a 130 hp Cleget engine.
Button
13

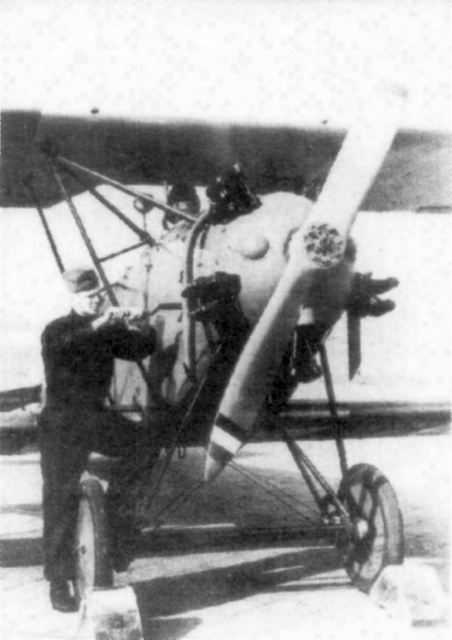

An S.IV with a 150 hp Armstrong Siddeley mongoose engine is cranked up.
Button
14

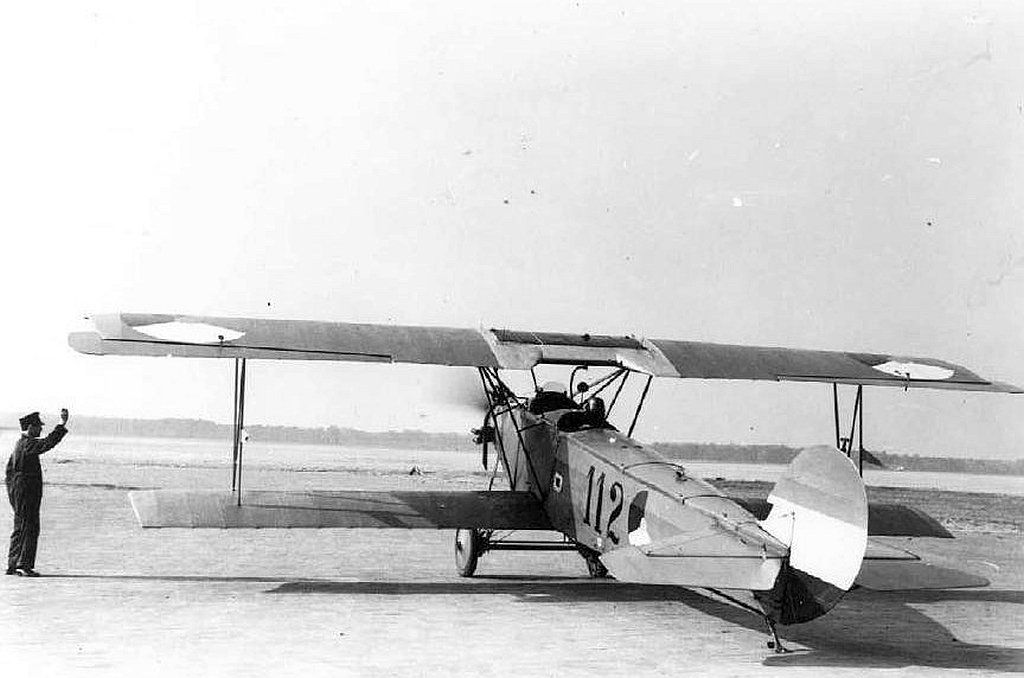

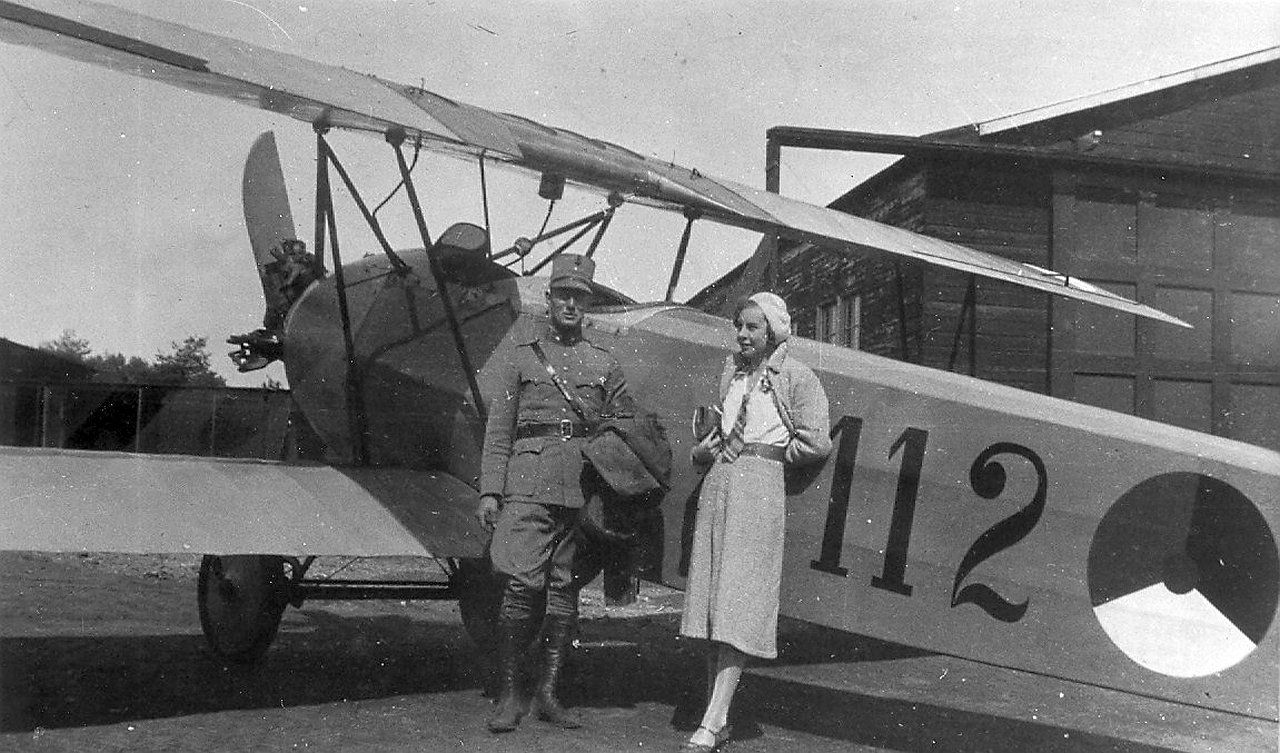

The Fokker S.IV 112 of the LVA with instructor, good weather and pleasant company.
This S.IV is equipped with a 150 hp Armstrong-Siddeley Mongoose engine of 150 hp.

This recording was made at Soesterberg Airport.
Button
15

The same 112 from LVA Aviation Department.
Button
16

In any case, this is also a Fokker S.IV.
If airworthy, these training aircraft will fly from 1924 to 1940.
Then most of them are destroyed on the ground or in the air.
Button
17

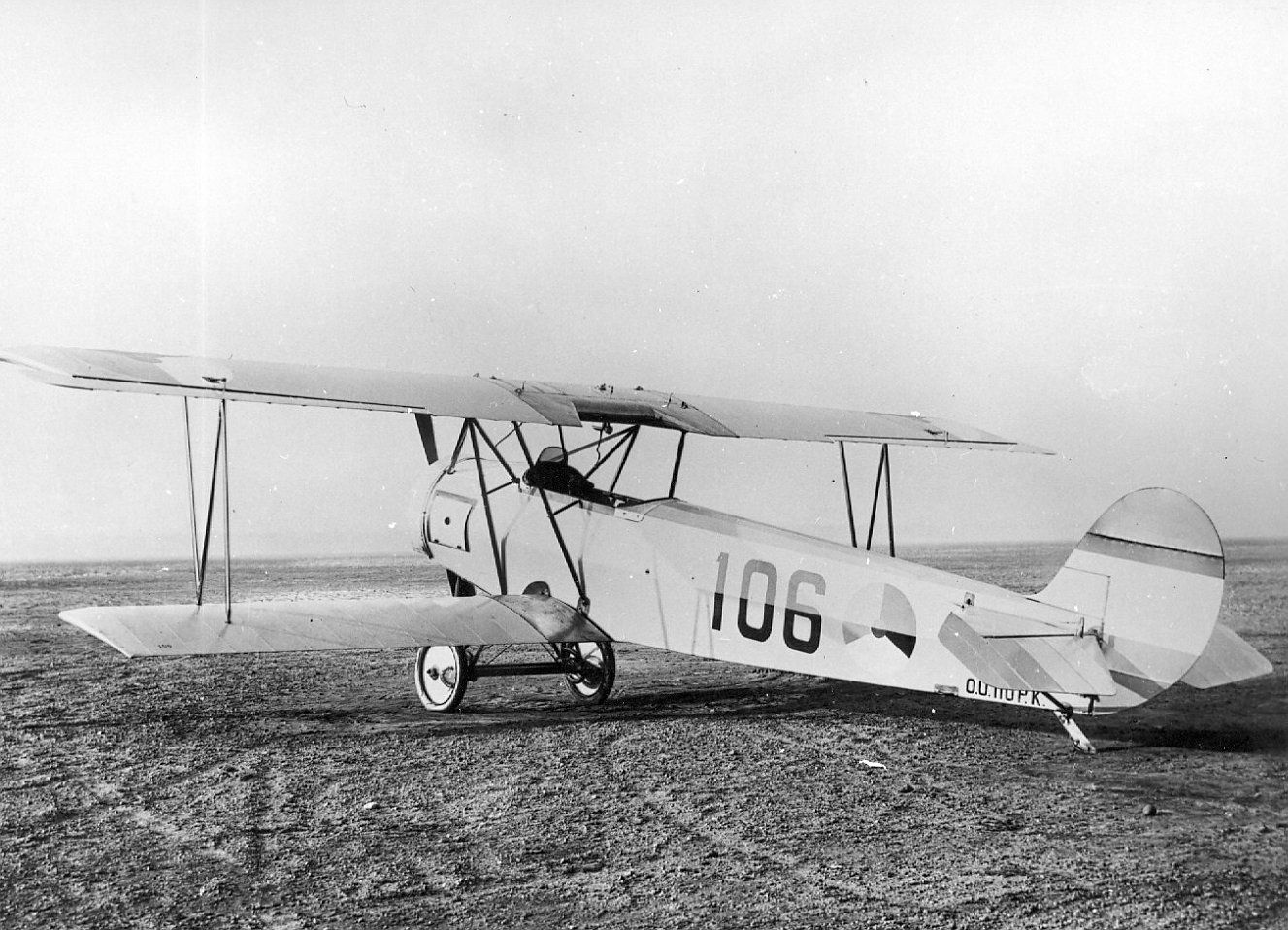

The LVA 106 is equipped with a 110 hp Oberursel engine.
That engine was also in the prototype.

Then this plane was later delivered to LVA as 106 or another registration number.
Button
18

The remaining frame of an S.IV later went to Museum Aeroplanorama.
From there it arrives at Aviodome at Schiphol Center .

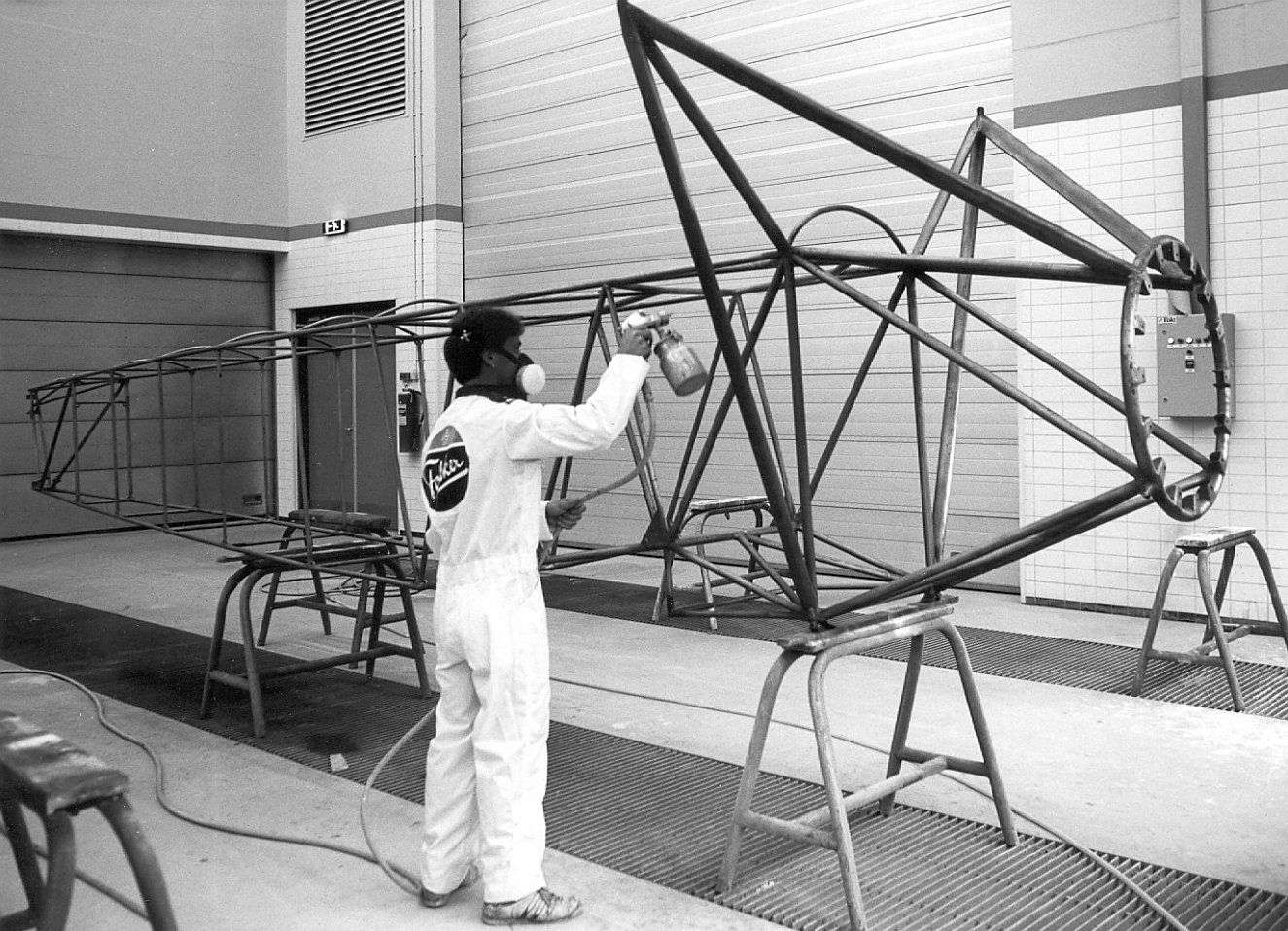

In 1983, the training aircraft at Schiphol East was repainted in the Fokker paint shop at Schiphol East.
Restoration S.IV behind the scenes at the Aviodrome
19

In 1983 the frame was again exhibited in Aviodome and later Aviodrome in Lelystad.
From that moment on, the choice is made to call the S.IV 100.

Here is a photo probably taken in 1983 still in Aviodome of the restoration team.

The aircraft with motor and wings has been in the Aviodrome collection in Lelystad for years.
There a new crew is working on its completion.
Name restauratieploeg.
